$title An exchange model with endogenous provision of portering services
$ontext
This is a static general equilibrium exchange model with costly trade
flows. There are multiple regions, each with a representative consumers.
There are multiple commodities. Initial endowments of commodities,
e(g,r), are randomly distributed between zero and one.
Representative agents in each of these regions are endowed with a
single unit of time which they may either devote to leisure or to the
provision of transportation services. All agents share identical
Cobb-Douglas preferences over the consumption of goods, g, and
leisure, L:
U(c,L) = prod(g, C(g)) * L
Regions are randomly (uniformly) situated on a square field.
Interregional distances are Euclidian.
Goods exported from region r to region rr rely on portering services
provided either by agents from region r or from region rr. When a
porter carries a load from region r to region rr, he is assumed to be
available to carry a return load from rr to rr, although in
equilibrium there may be more porters on the trail from rr to r than
there are loads to be carried.
The number of porter-hours required for the transport of good g from r
to rr depends on commodity g's unit weight, w(g), and the distance
between regions r and rr, d(r,rr).
This model is implemented as a nonlinear complementarity problem using
MPSGE.
$offtext
SETS r Regions /r1*r10/
g Goods /g1*g10/;
ALIAS (s,r,rr);
PARAMETERS d(r,rr) Distance
x(r) X coordinate of region r
y(r) Y coordinate of region r
w(g) Weight (shipping cost)
e(g,r) Endowments
phi(g,r,rr) Iceberg output coefficient
theta Commodity value share;
* Regional coordinates are randomly distributed:
x(r) = UNIFORM(0,1);
y(r) = UNIFORM(0,1);
* Inter-regional distances are Euclidian:
d(r,rr) = SQRT(SQR(x(r)-x(rr)) + SQR(y(r)-y(rr)));
* Initial endowments are uniformly distributed between 0 and 1:
e(g,r) = UNIFORM(0,1);
* Commodity weights (transport costs) are indices between 0 and 1:
w(g) = UNIFORM(0,1);
* Cobb-Douglas preferences with symmetric value shares:
theta = 1/CARD(g);
* Iceberg output coefficient declines with distance and with
* commodity weight:
phi(g,r,rr) = 1-(d(r,rr)/sqrt(2))*w(g);
set t(s,r,rr) Transportation routes;
t(s,r,rr) = yes$((ord(r) < ord(rr)) and (sameas(s,r) or sameas(s,rr)));
$ontext
$model:porters
* Declare variables according to their interpretation in the
* economic equilibrium model:
$sectors:
* Unlike the algebraic model, MPSGE requires that we explicitly
* omit commodities which are not in the model. This is done
* using the GAMS exception operator, $:
EXPORT(g,r,rr)$(not SAMEAS(r,rr)) ! Export of good g from r to rr
PORTER(s,r,rr)$t(s,r,rr) ! Provision of transport services
* Note: PORTER(s,r,rr) represents porter services on the r-rr route
* provided by porters from region s. In this context s represents either
* r or rr -- loads carried from r to rr are only carried by porters
* from r or rr.
$commodities:
P(g,r) ! Commodity prices
PL(r) ! Wage rate in region r
PT(r,rr)$(not sameas(r,rr)) ! Cost of transport from r to rr
$consumers:
RA(r) ! Representative agents
* Declare a "production" activity which removes one unit
* of good g from the region r market and delivers phi(g,r,rr)
* units to the corresponding region rr market:
$prod:EXPORT(g,r,rr)$(not sameas(r,rr))
o:P(g,rr) q:1
i:P(g,r) q:1
i:PT(r,rr) q:(1-phi(g,r,rr))
* When a porter from s carries loads between r and rr, he provides
* transport services in both directions:
$PROD:PORTER(s,r,rr)$t(s,r,rr)
o:PT(r,rr) q:1
o:PT(rr,r) q:1
i:PL(s) q:1
* Final demand is Cobb-Douglas:
$demand:RA(r) s:1
d:P(g,r) q:1
d:PL(r) q:1
e:PL(r) q:1 ! Each region has a unit endowment of time
e:P(g,r) q:e(g,r) ! and a random endowment of commodities.
$report:
v:welfare(r) w:RA(r) ! Generate a welfare index
$offtext
$sysinclude mpsgeset porters
* Generate and solve the model:
$include porters.gen
solve porters using mcp;
PORTER.L(s,r,rr)$(not t(s,r,rr)) = 0;
PT.L(r,r) = 0;
* Report prices:
DISPLAY PT.L;
* Report difference between supply and demand of portering
* services:
PARAMETER loads(r,rr) Aggregate loads from r to rr,
xssupply(r,rr) Excess supply of portering services,
deadheadpct(r,rr) Porters without loads as a percent of porters on route;
loads(r,rr) = sum(g, EXPORT.L(g,r,rr)*(1-phi(g,r,rr)));
xssupply(r,rr) = round(sum(s, PORTER.L(s,r,rr)$t(s,r,rr) + PORTER.L(s,rr,r)$t(s,rr,r))
- loads(r,rr) ,3);
deadheadpct(r,rr)$(xssupply(r,rr) + loads(r,rr))
= round(100 * xssupply(r,rr) / (xssupply(r,rr) + loads(r,rr)));
option deadheadpct:0;
display xssupply, deadheadpct;
* Produce a report of
parameter summary(r,*) Percentage of porters on joint trail from row region;
summary(r,"PLnom") = PL.L(r);
summary(r,"P") = PROD(g, P.L(g,r))**(1/card(g));
summary(r,"PLreal") = PL.L(r)/summary(r,"P");
summary(r,"INCOME") = RA.L(r);
summary(r,"WELFARE") = WELFARE.L(r);
summary(r,"LOADS") = sum(t(r,s,rr),PORTER.L(r,s,rr));
display summary;
Results
Note in the first two tables of results that the cost of transportation services is
zero for those trade links in which there are excess supplies of
portering services. When lots of loads originate in r destine for rr,
there may not be as many return loads.
---- 418 VARIABLE PT.L Cost of transport from r to rr
r1 r2 r3 r4 r5 r6 r7 r8 r9 r10
r1 0.244 0.105 0.199 0.212 0.302 0.068 0.181
r2 0.134 0.097 0.151 0.166 0.378 0.081
r3 0.289 0.282 0.200 0.034 0.224 0.333 0.119 0.184
r4 0.407 0.378 0.394 0.268 0.323 0.527 0.195 0.427
r5 0.208 0.227 0.194 0.145 0.040 0.412 0.412 0.166 0.121
r6 0.407 0.378 0.360 0.498 0.373 0.439 0.498 0.481 0.498
r7 0.195 0.212 0.170 0.145 0.029 0.416 0.172 0.126
r8 0.105 0.061 0.015 0.052 0.050
r9 0.339 0.297 0.275 0.286 0.246 0.296 0.430 0.325
r10 0.226 0.378 0.210 0.137 0.291 0.342 0.542 0.156
---- 434 PARAMETER xssupply Excess supply of portering services
r2 r4 r5 r6 r10
r1 0.025 0.012
r2 0.026 0.049 0.050
r3 0.001
r4 0.004
r7 0.002
r8 0.038 0.036
r9 0.011
---- 434 PARAMETER deadheadpct Porters without loads as a percent of porters on route
r2 r4 r5 r6 r10
r1 52 100
r2 54 90 75
r3 4
r4 37
r7 21
r8 69 94
r9 36
Notice in the summary table that regions with low read wages and low
incomes carry most of the loads:
---- 445 PARAMETER summary Percentage of porters on joint trail from row region
PLnom P PLreal INCOME WELFARE LOADS
r1 0.407 1.114 0.365 4.081 0.365 0.088
r2 0.378 1.126 0.336 3.105 0.277 0.254
r3 0.394 1.109 0.355 4.115 0.370 0.050
r4 0.564 1.096 0.515 6.203 0.547
r5 0.412 1.110 0.372 4.041 0.362 0.109
r6 0.498 1.087 0.458 5.188 0.466 0.053
r7 0.468 1.114 0.420 5.011 0.442 0.027
r8 0.542 1.146 0.473 5.895 0.501 0.011
r9 0.481 1.099 0.437 4.856 0.433 0.081
r10 0.583 1.108 0.526 6.409 0.558

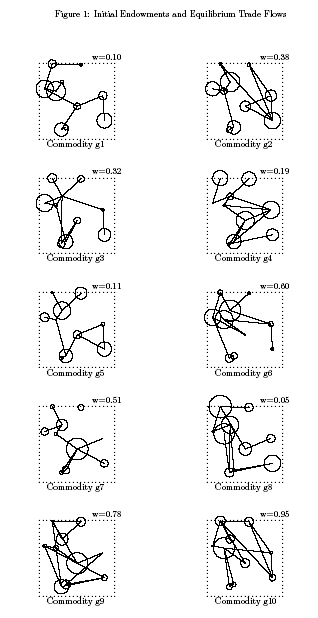

Graphical Representation of Equilibrium Flows
This figure is generated with LaTeX using the GAMS code shown in http://www.mpsge.org/iceberg:
